CONCRETE BUGGY SC30
- Power Unit
- Honda eGX Motor
- Dumping Method
- 90° Hydraulic Dump
- Environmental Rating
- All-Electric (Zero Emission)
- Safety Device
- Deadman Clutch
- Transmission Type
- Super Slow Speed Transmission

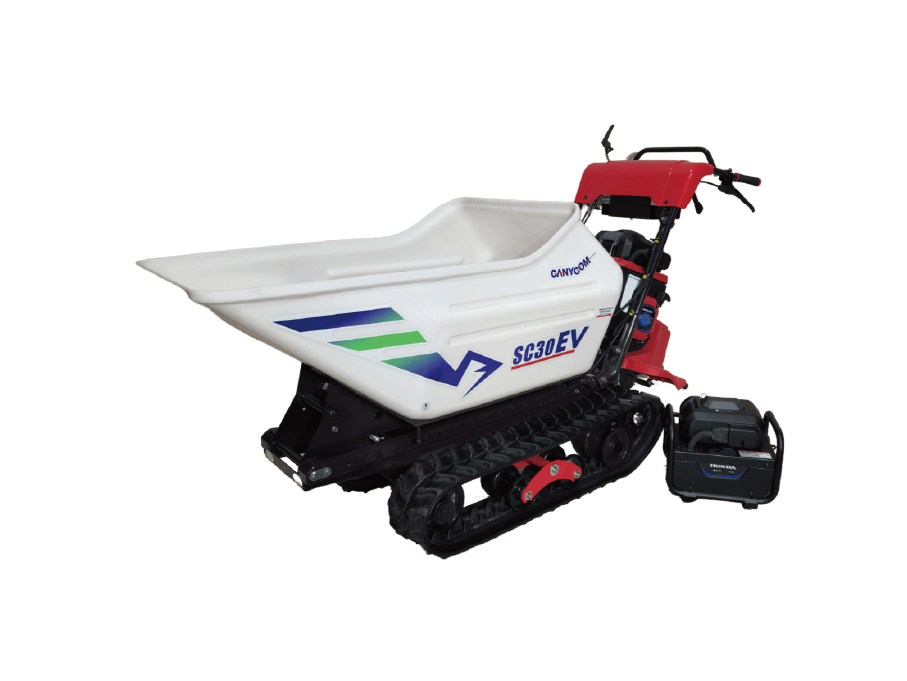

SC30EV is equipped with a Honda eGX electric motor, designed for efficient operation in tight or confined spaces. With two included batteries and a charger, it minimizes downtime caused by recharging.
This machine can climb steep slopes, maneuver through extremely narrow areas, and transport materials in locations where fuel is hard to obtain—such as remote islands. It operates over rough terrain without concerns about ventilation or harmful exhaust fumes.

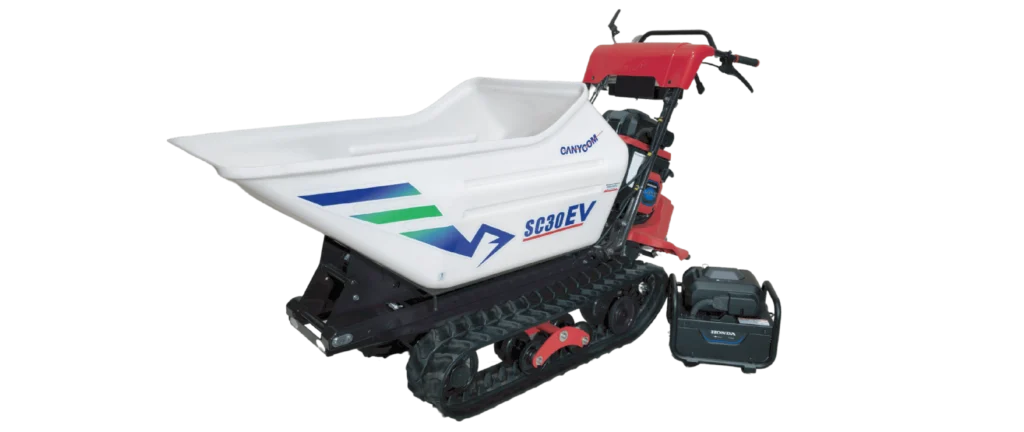

KEY FEATURES
1. HONDA eGX Electric Power
Eco-friendly, durable, and easy to use with continuous operation up to 50 minutes.
2. Versatile Applications
Ideal for a wide range of tasks including concrete mixing, material transport, construction, landscaping, farming, and more.
3. Lightweight & Easy to Clean
Polyethylene bucket for effortless concrete removal and quick cleanup.
4. Exclusive NAGARA Transmission
Ultra-low speed control with 6 forward and 2 reverse gears (0.25 km/h to 4.4 km/h) for precision handling.
5. Swing Track Rollers
Absorb shocks on uneven terrain for smoother, more stable travel.
Specifications
| SC30 | |||
|---|---|---|---|
| Model | 1-Way Dump | ||
| Type | Scoop Bucket | ||
| Machine Mass | 220kg | ||
| Maximum Payload | 2.94kN (300kgf) | ||
| Overall Length | 2140mm {2045mm} | ||
| Overall Width | 740mm | ||
| Overall Height | 1055mm {1150mm} | ||
| Loading Bucket | Inside Dimensions | Length | 1245mm |
| Width | 730mm | ||
| Height | 430mm | ||
| DC Power Unit | Model | Honda GXE2.0H | |
| Type | Motor unit | ||
| Net Power | 1.8kw (2.4PS) / 3600rpm | ||
| Net Torque | 4.8N•m (0.49kgf•m) / 3600rpm | ||
| Operating Temperature Range | between -15°C (5°F) ～ 40°C (104°F) | ||
| Speed | Forward (4stage) 0.5 - 3.3km/h Reverse (2stage) 0.7 - 2.5km/h | ||
| Minimum Turning Radius | 1.2m | ||
| Gradability | 15°(Unloaded) | ||
| Dumping Max. Angle | 90° | ||
| Swiveling Angle | ー | ||
{ } indicates when handle lever is in the high position.
*These specifications are subject to change without notice.
