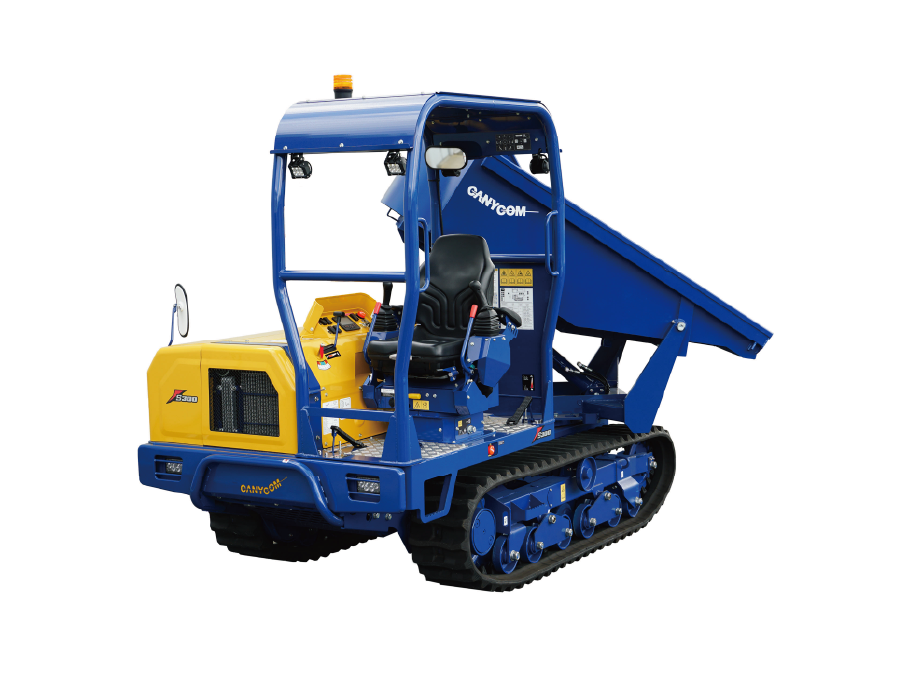

TRACKED DUMPER S300
- Engine Model
- Kubota V2403 (Tier 4 Final / Stage IV)
- Controls
- Joystick Control Available
- Dump Body Type
- Swivel Dump
- Body Material
- Swedish Steel Bucket
- Dump Body Type
- 180° Pivoting Dump
- Max. Payload
- 3000kg

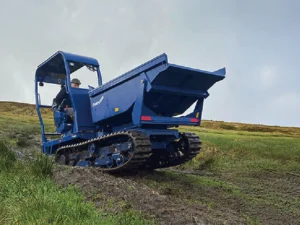

Boost productivity with the Canycom S300, a rugged tracked dumper built for heavy-duty hauling. With a maximum payload of 6,614 lbs (3,000 kg), it tackles demanding jobs with ease while maintaining stability on rough terrain. The eco-friendly diesel engine with DPF reduces emissions, and the 34.9 kW power unit paired with an advanced HST system delivers smooth, stress-free operation. Durable, efficient, and easy to maneuver—the S300 is the go-to machine for construction, landscaping, and large-scale material transport.

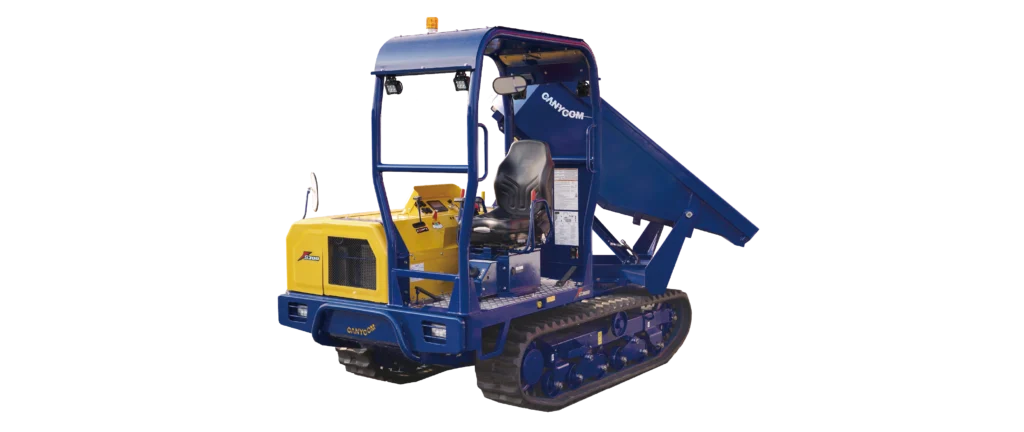

KEY FEATURES
1. 180° turning operator seat
The rotating operator seat allows a safe maneuver with a better visibility on your surroundings but also helps to drive safely in both directions forward and backward.
2. Hardox Bucket
High-strength Swedish steel is used for the cargo bed bottom plate.
3. Eco Drive mode
Pressing this switch reduces the engine output to 80% of maximum.
4. Safety lever
Pulling the lock lever up disables the drive levers.
5. Control panel with LCD monitor
Liquid Crystal Display (LCD) shows fuel level, accumulative hours used, and coolant temperature.
Specifications
| S300 | |||||
|---|---|---|---|---|---|
| Model | Swivel Dump | Swivel Dump | Straight Dump | ||
| Type | Scoop Bucket / Joystick control | Scoop Bucket | Flat Bucket | ||
| Machine Mass | 2780kg | 2690kg | 2470kg | ||
| Maximum Payload | 29.4kN (3000kgf) | 29.4kN (3000kgf) | 29.4kN (3000kgf) | ||
| Overall Length | 3675mm | 3675mm | 3300mm | ||
| Overall Width | 1620mm | 1620mm | 1645mm | ||
| Overall Height | 2370mm | 2370mm | 2370㎜ | ||
| Loading Bucket | Inside Dimensions | Length | 2155mm | 2155mm | 1685mm |
| Width | 1300mm | 1300mm | 1420mm | ||
| Height | 520mm | 520mm | 370mm | ||
| Engine | Model | Kubota V2403 | Kubota V2403 | Kubota V2403 | |
| Type | 4-cycle, Water-cooled Diesel, in-line 4 cylinder | 4-cycle, Water-cooled Diesel, in-line 4 cylinder | 4-cycle, Water-cooled Diesel, in-line 4 cylinder | ||
| Displacement | 2434㎤ | 2434㎤ | 2434㎤ | ||
| Maximum Output | 34.9kW (47.5PS) / 2700rpm *net | 34.9kW (47.5PS) / 2700rpm *net | 34.9kW (47.5PS) / 2700rpm *net | ||
| Maximum Torque | 155.0N•m(15.8kgf•m) / 1600rpm *net | 155.0N•m(15.8kgf•m) / 1600rpm *net | 155.0N•m(15.8kgf•m) / 1600rpm *net | ||
| Speed | High Speed／ 0 - 11km/h Low Speed／ 0 - 6km/h | High Speed／ 0 - 11km/h Low Speed／ 0 - 6km/h | High Speed／ 0 - 11km/h Low Speed／ 0 - 6km/h | ||
| Minimum Turning Radius | approx. 2.3m | approx. 2.3m | approx. 2.3m | ||
| Gradability | 25° (Unloaded) | 25° (Unloaded) | 25° (Unloaded) | ||
| Dumping Max. Angle | 85° | 85° | 85° | ||
| Swiveling Angle | 90(Right) - 90 (Left) | 90 (Right) - 90 (Left) | 90 (Right) - 90 (Left) | ||
* These specifications are subject to change without notice.
