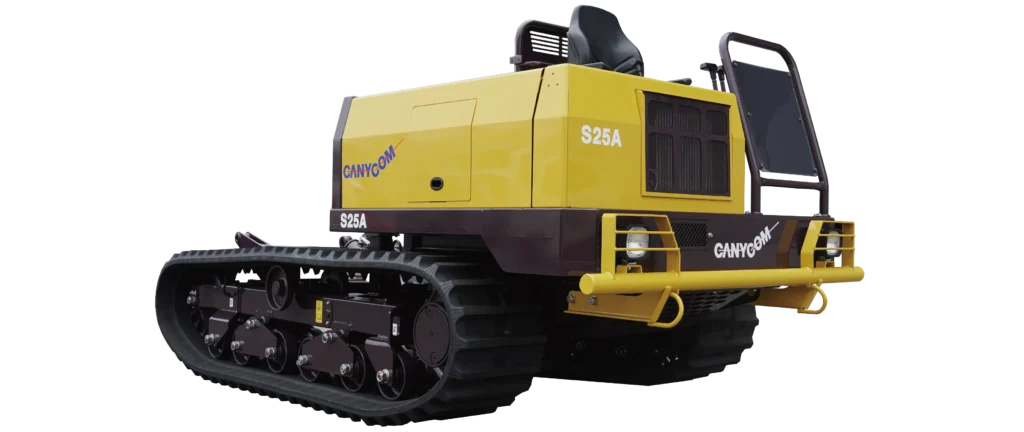

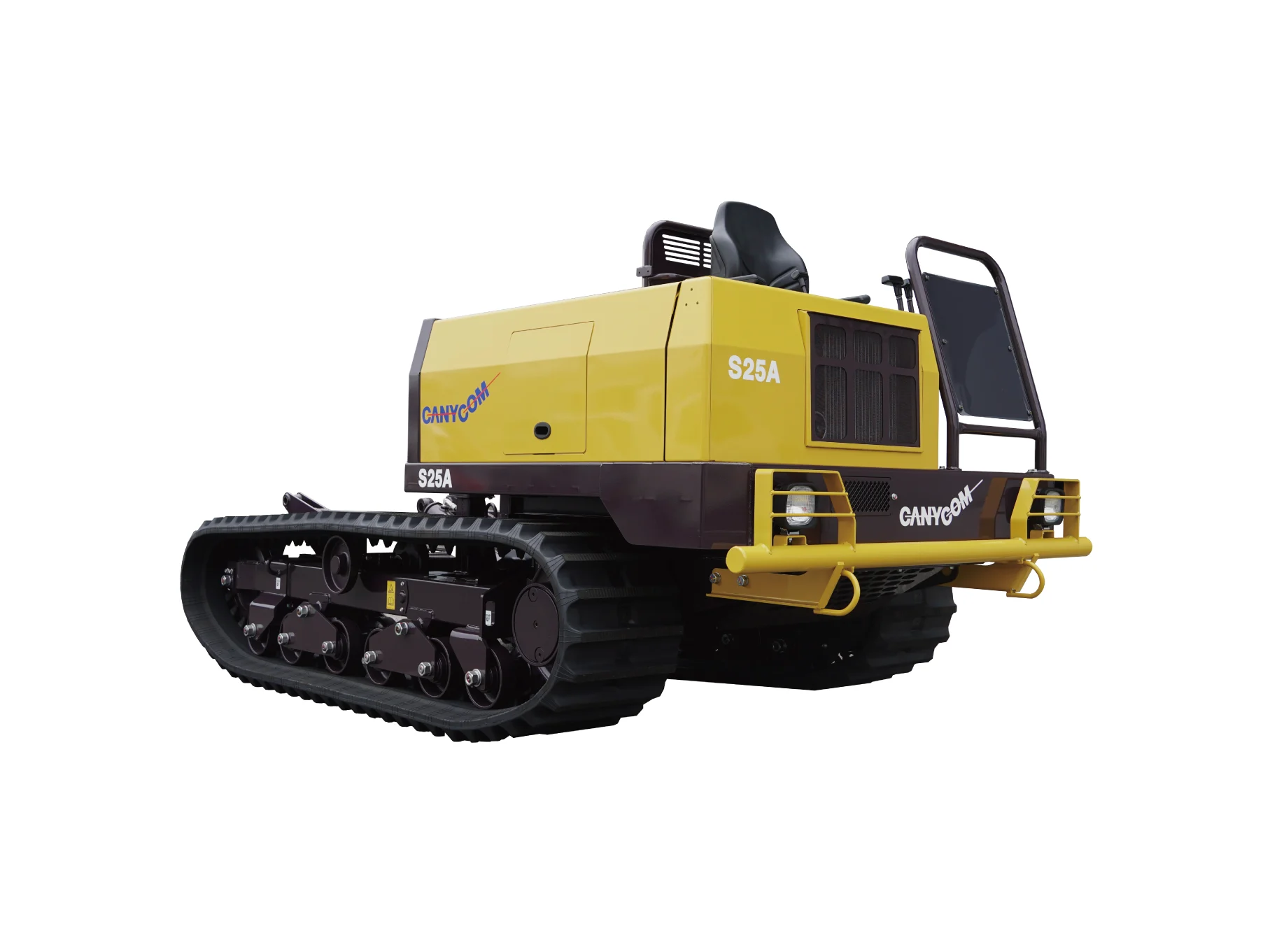

TRACKED DUMPER S25A
- Engine Model
- Kubota V2203
- Max. Output
- 34.1 kW (46.4 PS)
- Max. Payload
- 2,500 kg
- Track Width
- 400 mm
- Gradeability
- 30°
- Min. Turning Radius
- 2.0 m
The Canycom S25A is a heavy-duty base carrier built to perform on the toughest job sites. Powered by a reliable 34.1 kW (46.4 PS) Kubota V2203 diesel engine, it carries up to 2,500 kg across soft ground, slopes, and uneven terrain with ease. Wide 400 mm tracks provide solid stability and traction, while a 2-speed HST system delivers smooth control up to 11 km/h. With 30° gradeability and a 2.0 m turning radius, it handles steep grades and tight spaces confidently.
The open load deck accepts a range of locally fitted attachments—making the S25A a reliable and flexible platform for construction, agriculture, and plantation work.
KEY FEATURES
1. Heavy-Duty Payload Capacity
Carries up to 2,500 kg, handling large and heavy loads across demanding job sites with confidence.
2. Wide Track Stability
400 mm tracks and a 1,270 mm track tread provide solid traction and stability on soft ground, peat, and uneven terrain.
3. 2-Speed HST System
Smooth and responsive speed control up to 11 km/h, with precise 2-pump, 2-motor steering for easy handling.
4. Exceptional 30° Gradeability
Tackles steep slopes with confidence, outperforming many carriers in its class.
5. Versatile Open Load Deck

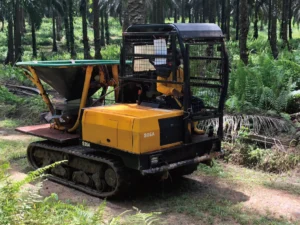

Accepts a range of locally fitted attachments including fertilizer spreaders and sprayers, adapting to diverse operations.
Specifications
| S25A | ||||
|---|---|---|---|---|
| Model | With ROPS | For Fertilizer Spreading | ||
| Type | No Bucket | No Bucket | ||
| Machine Mass | 2185kg | 1980kg | ||
| Maximum Payload | 24.5kN | 24.5kN | ||
| Overall Length | 2995mm | 2995㎜ | ||
| Overall Width | 1740mm | 1670㎜ | ||
| Overall Height | 2370mm | 1720㎜ | ||
| Loading Bucket | Inside Dimensions | Length | 1685mm | 1685㎜ |
| Width | 1420mm | 1420㎜ | ||
| Height | 370mm | 370㎜ | ||
| Engine | Model | Kubota V2203 | Kubota V2203 | |
| Type | 4-cycle, water-cooled, in-line type, swirl chamber | 4-cycle, water-cooled, in-line type, swirl chamber | ||
| Displacement | 2197㎤ | 2197㎤ | ||
| Maximum Output | 34.1kW (46.4PS) / 2800rpm*net | 34.1kW (46.4PS) / 2800rpm*net | ||
| Maximum Torque | 139.6N•m (14.2kgf•m) / 1600rpm*net | 139.6N•m (14.2kgf•m) / 1600rpm*net | ||
| Speed | High 0 - 11km/h / Low 0 - 6.0km/h | High 0 - 11km/h / Low 0 - 6.0km/h | ||
| Minimum Turning Radius | 2m | 2m | ||
| Gradability | 30° (Empty) | 30° (Empty) | ||
| Dumping Max. Angle | 60° | 60° | ||
*These specifications are subject to change without notice.
