TRACKED DUMPER S160
- Engine Model
- Kubota D1105-E4B (Tier 4 / Stage IIIB)
- Machine Class
- 1.6-Ton Compact Ride-On Carrier
- Dump Body Type
- 180° Pivoting Dump
- Max. Dump Angle
- 90° Dump Angle
- Safety Feature
- ROPS for safety and comfort
- Handling Features
- High Maneuverability

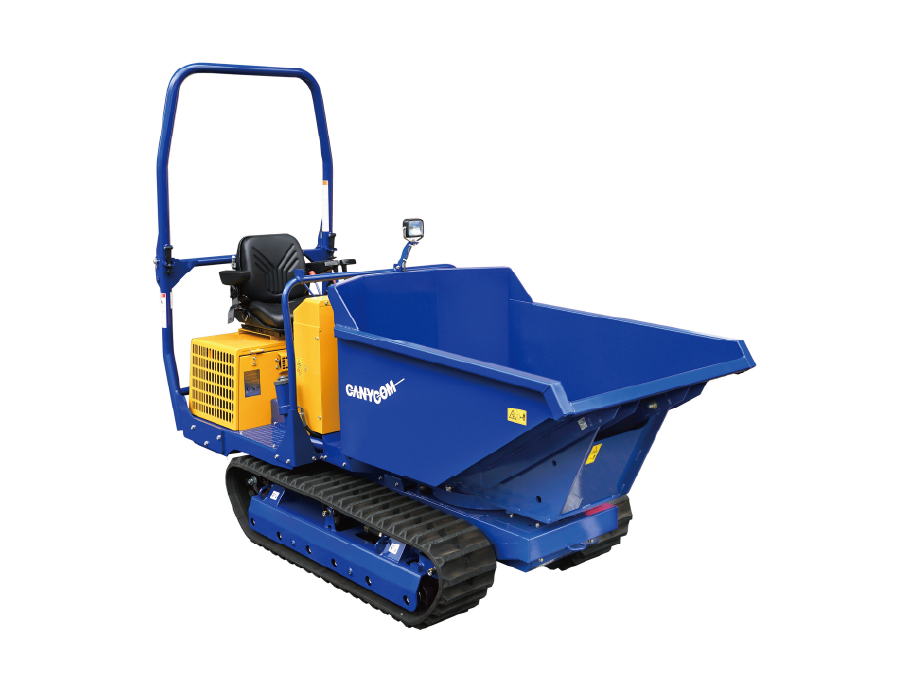

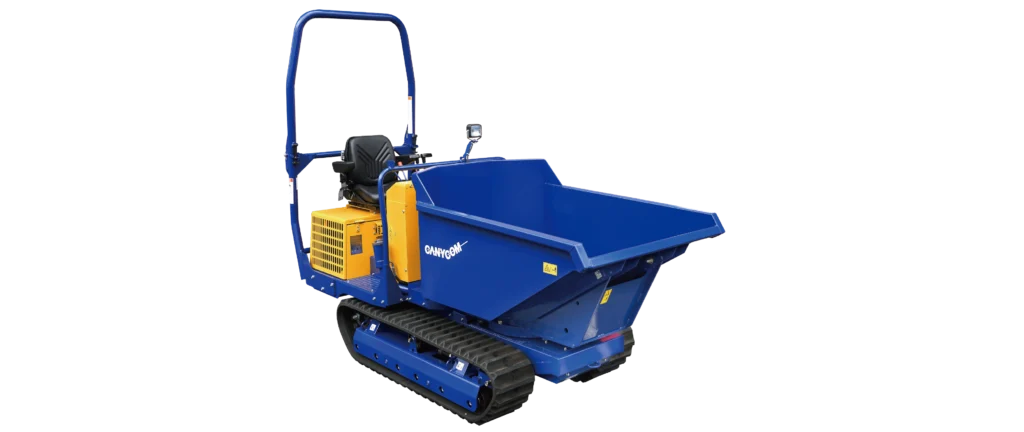

The Canycom S160 compact carrier features a 180° pivoting dump box and is engineered for outstanding performance and maneuverability in harsh or confined job site conditions.
Powered by a 20.5 HP Kubota diesel engine, it carries up to 1,600 kg (3,530 lbs) and climbs 25° grades with ease.
The hydraulic 180° swivel dump allows smooth loading and unloading, while its 90° dump angle ensures efficient discharge.
Wider tracks and an optimized wheelbase increase ground contact, improving traction and stability for transporting heavy loads across challenging terrain.
KEY FEATURES
1. Heavy Duty Undercarriage
Rubber Track Undercarriage with See-saw Rollers for Comfortable, Smooth Ride.
2. Swivel Dump
The swivel dump at 180° and dumping angle at 90° simplify the loading and unloading of material.
3. Easy Maintenance
Easy access engine hood opens fully for quicker maintenance and inspections.
4. ROPS
Folding ROPS for Transport and Low Clearance Areas
5. Adjustable Seat
Comfortable Seat with Easy to Operate Controls
Specifications
| S160 | |||
|---|---|---|---|
| Model | Swivel Dump | ||
| Type | Scoop Bucket | ||
| Machine Mass | 1400【1340】kg | ||
| Maximum Payload | 15.7kN (1600kgf) | ||
| Overall Length | 2940【2850】mm | ||
| Overall Width | 1150【1120】mm | ||
| Overall Height | 2385【1575】mm | ||
| Loading Bucket | Inside Dimensions | Length | 1475mm |
| Width | 1010mm | ||
| Height | 550mm | ||
| Engine | Model | Kubota D1105-E4B | |
| Type | Water-cooled 4-cycle Diesel, in-line 3 cylinder | ||
| Displacement | 1123㎤ | ||
| Maximum Output | 15.4kW (20.9PS) / 2400rpm | ||
| Maximum Torque | 70.3N•m(7.2kgf•m) / 1600rpm | ||
| Speed | 0 - 7.0km/h | ||
| Minimum Turning Radius | 1.7m | ||
| Gradability | 25° (Empty) | ||
| Dumping Max. Angle | 90° | ||
| Swiveling Angle | 90(Right) - 90 (Left) | ||
*【 】indicates models without ROPS.
*These specifications are subject to change without notice.
