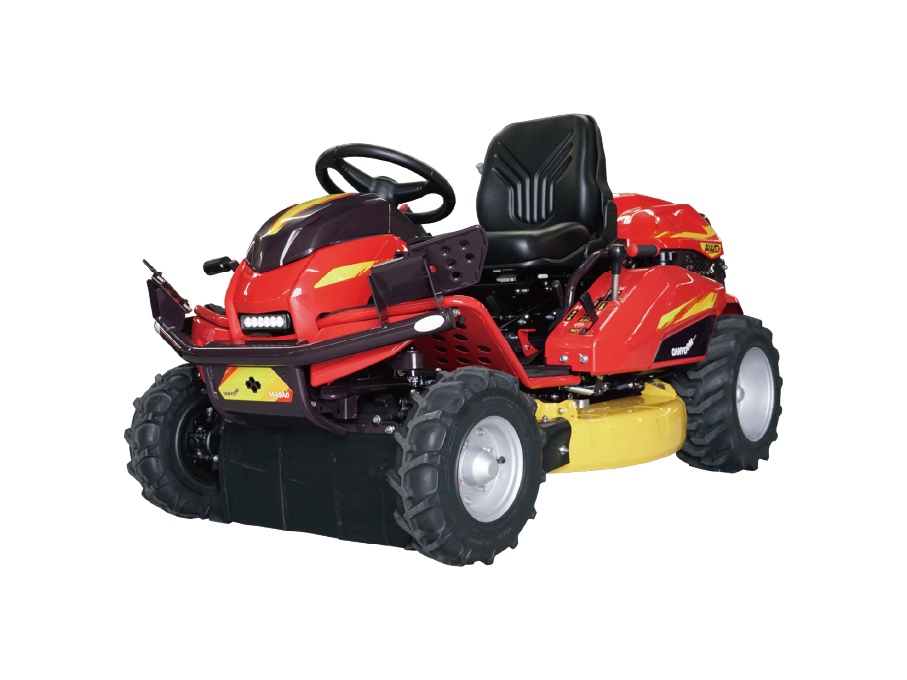

RIDE-ON BRUSH CUTTER CMX1810
- Drive System
- All-Wheel Drive (4WD)
- Braking System
- Secure Front Brake
- Max. Gradeability
- Slopes up to 25°
- Engine Model
- 18 HP High-Torque Engine
- Turning Radius
- Compact 1.9 m Turning Radius
The Canycom CMX1810 features an advanced AWD system that delivers outstanding traction and control. It can tackle slopes of up to 25° in AWD mode or 15° in 2WD mode.
A major advantage of this mechanical system is its ability to maintain AWD even on downhill terrain—something hydraulic systems cannot achieve. This ensures greater stability and reduces the risk of getting stuck on uneven or challenging ground.
Combined with AWD, a differential lock, and 150 mm of ground clearance, the CMX1810 offers superior driving performance and exceptional handling in rough conditions.

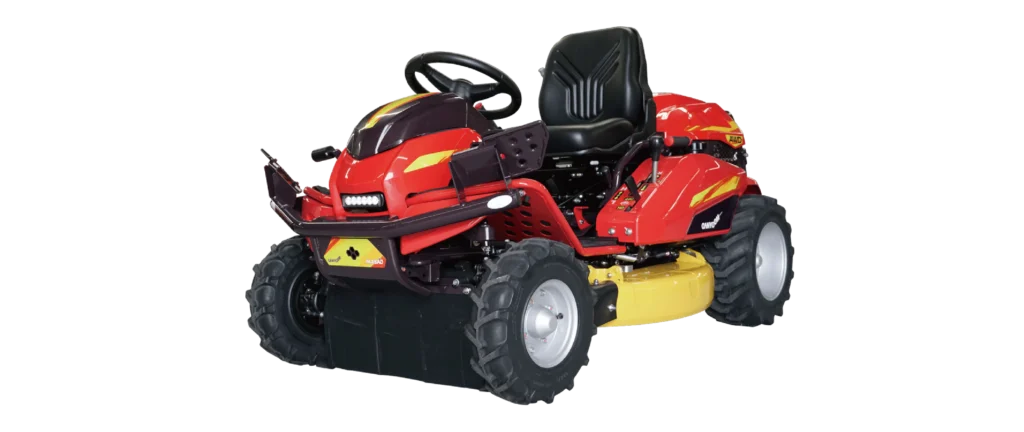

KEY FEATURES
1. Mechanical Four-Wheel Drive
Superior traction and control with mechanical 4WD, differential lock, and 150mm ground clearance for stable performance on slopes and uneven terrain.
2. Large-Diameter Rear Tires
New tread pattern and increased diameter improve grip on soft ground and raise ground clearance to 150mm.
3. Optimal Seating System
GRAMMER seat with one-touch height adjustment (7 cm) and enhanced cushioning for exceptional comfort.
4. Easy Maintenance
Quick-access engine and rear covers for effortless cleaning and routine checks.
Specifications
| CMX1810 | |||
|---|---|---|---|
| Cutting System | Shaft Drive | ● | |
| Easy Blade System | ● | ||
| Cutting Height | 0~150 mm - Stepless | ||
| Cutting Width | 975mm | ||
| Number of Blades | 2 | ||
| Blade Type | Free Knife & Stepped Stay | ||
| Machine Mass | 370kg | ||
| Mowing Rate | 7700m2/h *1 | ||
| Engine | Model | B&S 3564 | |
| Type | Air-cooled 4-cycle V-twin Gasoline | ||
| Displacement | 570㎥ | ||
| Maximum Output | 13.4kW (18.3PS) / 3600rpm | ||
| Maximum Torque | 35.5N•m (3.62kgf•m) / 3300rpm | ||
| Starter System | Electric | ||
| Fuel | Automotive Unleaded Gasoline | ||
| Fuel Consumption | 346g/kW•h (255g/PS•h) | ||
| Fuel Tank Capacity | 18L | ||
| Performance | Speed | High 0 to 14.2km/h / Low 0 to 8.0km/h | |
| Minimum Turning Radius | 1.9m | ||
| Gradeability | 25° | ||
| Stability Angle | 25° | ||
| Drive Train | Main Transmission | HST (Continuously Variable) | |
| Auxiliary Transmission | Constant Mesh | ||
| Tires | Front | AGR 4.00-7 (4PR) | |
| Rear | 19×8.00-10 (4PR) | ||
| Steering | Rack and Pinion Round Steering Wheel | ||
| Brakes | Internally Expanding | ||
*1 Estimated at the maximum speed with the transmission in Low position.
These specifications are subject to change without notice.
