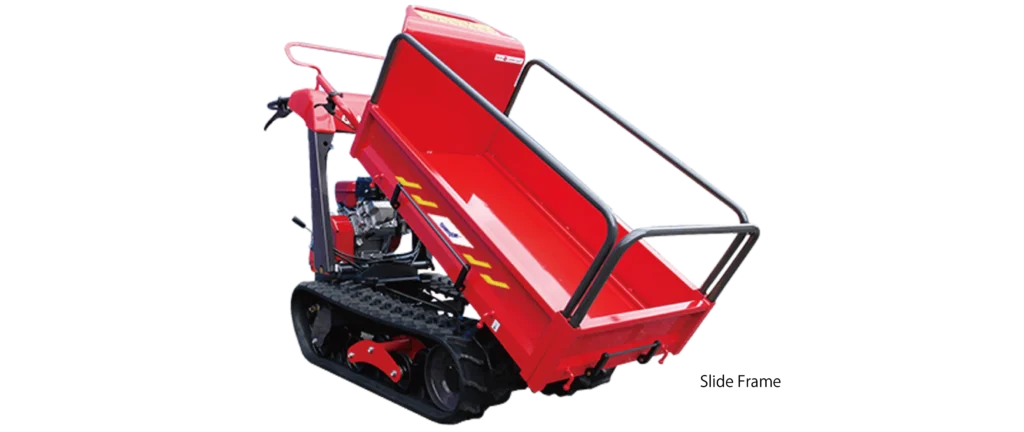

WALK-BEHIND CARRIER BP35
- Dumping System
- Manual Dump Model
- Machine Type
- Compact Walk-Behind Carrier
- Primary Feature
- Ideal for Narrow Spaces
- Max. Payload
- 350 kg
- Application
- Agricultural Transport
The Canycom BP35 Compact Walk-Behind Rubber Track Carrier is small enough to pass through garden gates and doorways, yet powerful enough to transport heavy loads across steep slopes and rough terrain. Its durable rubber tracks withstand extreme conditions, while low ground pressure minimizes surface damage and ensures excellent maneuverability in mud, on inclines, and on unstable ground.

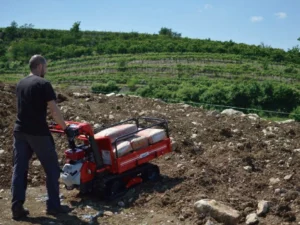

The six-forward, two-reverse transmission allows ultra-low-speed travel, enabling operators to load materials while moving. The BP35 is widely used in agriculture, park maintenance, landscaping, pathway construction, general construction, and utility work.
KEY FEATURES
1. Compact Body
A versatile, space-saving machine—perfect for contractors or homeowners managing challenging terrain.
2. Multiple Deck Options

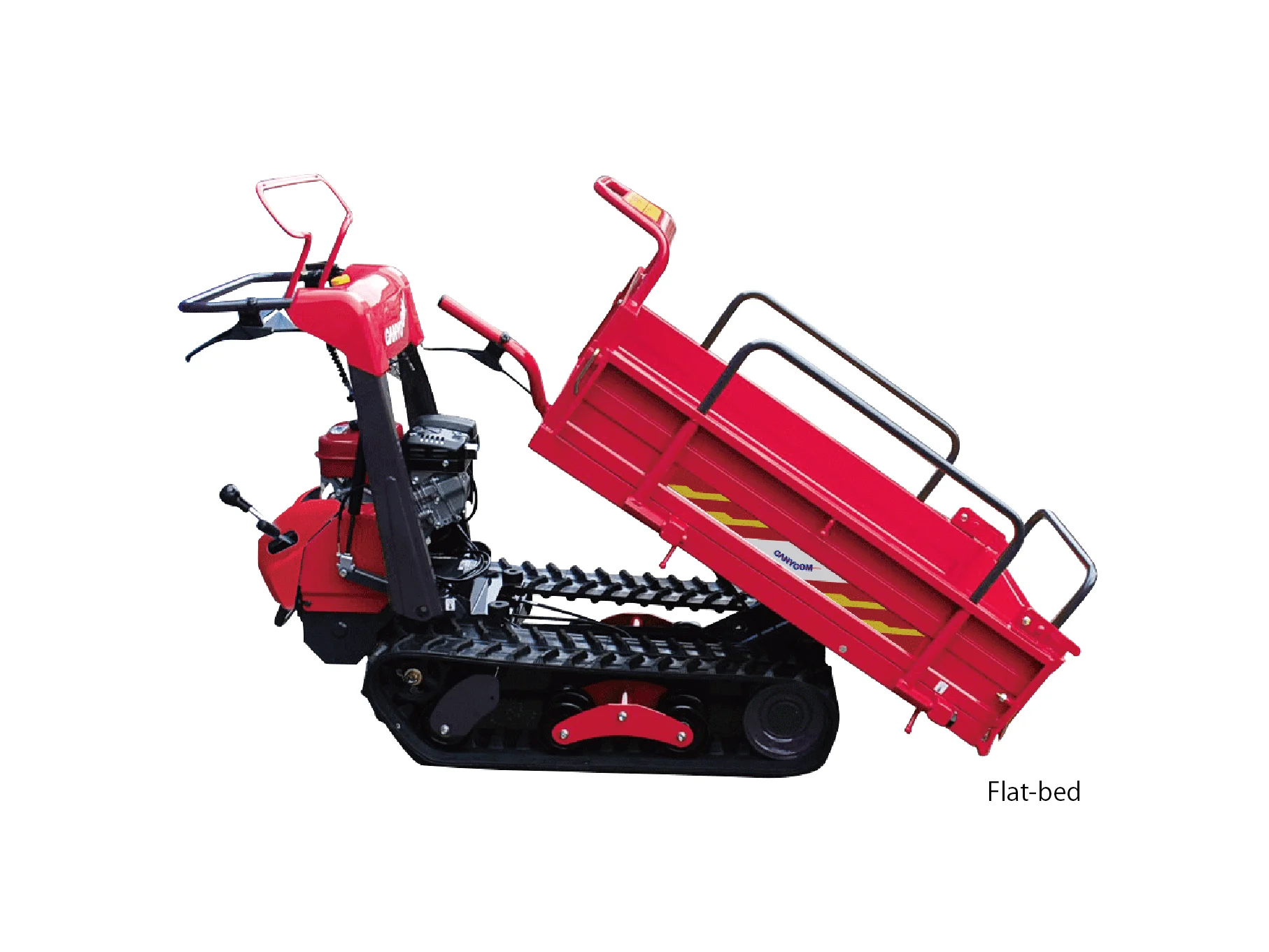

Choose from three practical deck types for maximum flexibility: Three-Way Opening Door Deck: Wide loading platform access. Slide Frame: Quick, easy panel adjustments. Scoop Bucket: Simplified loading/unloading of sand and small stones.
3. Exclusive NAGARA Transmission
Ultra-low speed control with 6 forward and 2 reverse gears (0.25 km/h to 4.4 km/h) for precision handling.
4. Swing Track Rollers
Absorbs shocks on uneven terrain for smoother, more stable travel.
5. Durable Core Metal Crawler
Enhanced strength with steel cords for long-lasting performance.
Specifications
| BP35 | |||||
|---|---|---|---|---|---|
| Model | 1-Way Dump | 1-Way Dump | 1-Way Dump | ||
| Type | Slide Frame | Three-way Folding Gate | Scoop Bucket | ||
| Machine Mass | 190kg | 200kg | 185kg | ||
| Maximum Payload | 3.43kN (350kgf) | 3.43kN (350kgf) | 3.43kN (350kgf) | ||
| Overall Length | 1655 {1925} mm | 1770 {2040} mm | 1725 {1995} mm | ||
| Overall Width | 625mm | 840mm | 740mm | ||
| Overall Height | 1020 {820} mm | 1020 {820} mm | 1020 {820} mm | ||
| Loading Bucket | Inside Dimensions | Length | 950 <1110> mm | 1070 mm | 1080 mm |
| Width | 520 <900> mm | 750 mm | 690 mm | ||
| Height | 150mm | 200mm | 200mm | ||
| Engine | Model | HondaGX120 | HondaGX120 | HondaGX120 | |
| Type | Air-cooled 4-cycle OHC gasoline, single slanted cylinder | Air-cooled 4-cycle OHC gasoline, single slanted cylinder | Air-cooled 4-cycle OHC gasoline, single slanted cylinder | ||
| Displacement | 118㎤ | 118㎤ | 118㎤ | ||
| Maximum Output | 2.1 (2.8PS) / 3600rpm | 2.1 (2.8PS) / 3600rpm | 2.1 (2.8PS) / 3600rpm | ||
| Maximum Torque | 7.3N•m (0.74kgf•m) / 2500rpm | 7.3N•m (0.74kgf•m) / 2500rpm | 7.3N•m (0.74kgf•m) / 2500rpm | ||
| Speed | Forward (6stage) 0.5 - 5.0㎞/h / Reverse (2stage)0.6 - 2.3㎞/h | Forward (6stage) 0.5 - 5.0㎞/h / Reverse (2stage)0.6 - 2.3㎞/h | Forward (6stage) 0.5 - 5.0㎞/h / Reverse (2stage)0.6 - 2.3㎞/h | ||
| Minimum Turning Radius | 1.2m | 1.2m | 1.2m | ||
| Gradability | 25°(unloaded) | 25°(unloaded) | 25°(unloaded) | ||
| Dumping Max. Angle | 54° | 40° | 54° | ||
Figures in { } indicates when handlebar is in the lower position.
Figures in indicates when slide frames are extended.
*These specifications are subject to change without notice.
